Hikmicro

Gryphon LRF GH25L Handheld Thermal

SKU: HIKGH25L AEN: 6974004640699
€1.688,37 incl. VAT
Out of stock
Contact us for delivery times
×
Gryphon LRF GH25L Handheld Thermal

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.

Gryphon LRF GH25L Handheld Thermal

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓Valid
Only plain are not allowed in the message Message length must be 250 characters allowed
Country is required

If WhatsApp can't deliver your alert, we may send it to the same number by SMS instead.

Your notification has been registered. Close

We respect your privacy and don't share your email with anybody.

×

Questions?

Feel free to contact us

Hikmicro Gryphon LRF GH25L Handheld Thermal
HIKGH25L

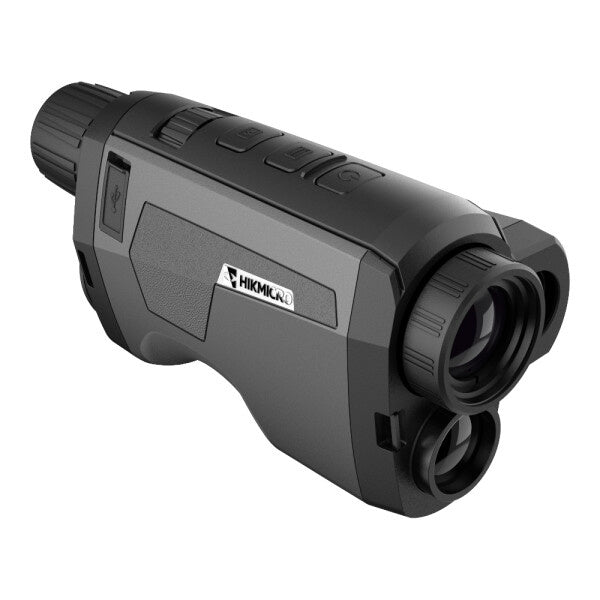

Hikmicro Gryphon GH25L handheld thermal observation camera with VOx 384x288, 12 µm 25 mm focusable lens, NETD< 35 mK, 1/2” progressive-scan CMOS 1960x1200 for image fusion: thermal & visible, 600 m LRF ± 1 m, OLED 1024x768, streaming at a maximum resolution of 50 fps, 2x

Outstanding Image Algorithm
The self-developed image algorithm optimizes image quality, providing users with a high-definition, cleaner image and highlighting the object's edges.

Advanced Technology
1. New Way to Control
The wheel is used for menu selection and zooming, making operation more natural. Each rotation gives users an excellent sense of control.

2. Advanced VOx 12 µm Imaging Sensor
The powerful VOx 12 µm imaging sensor with NETD<35 mK ensures perfect target recognition and presents clear, detailed images even in complete darkness.

3. Built-in Laser Rangefinder, Accurately Measure the Distance
The integrated laser rangefinder allows you to determine the distance in various scenarios, which plays an important role in precision shooting.

4. Replaceable Battery
Two batteries and a HIKMICRO external battery charger are included in the package, giving you the freedom to observe for as long as needed, even for a full day.

Thermal Module GH25L
Image Sensor VOx Uncooled Focal Plane Arrays
Maximum Resolution 384 × 288
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD ＜35 mK(@25°C,F#=1.0)
Lens (Focal Length) 25 mm
Detection Range 1200 m
Focus Mode Manual
Field of View 10.53° × 7.9° (H × V)
Minimum Focusing Distance 2 m
Aperture F1.0
Magnification 2.39
Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×
Optical Module
Image Sensor 1/2” Progressive Scan CMOS
Maximum Resolution 1920 × 1080
Minimum Illumination 0.001 Lux @ F1.0
Focal Length 22 mm
Wavelength 400 nm to 1000 nm
Image Display
Frame Rate 50 Hz
Display 0.39 inch, OLED, 1024 × 768
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Image Mode White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion
General
Protection Level IP67
Weight 510 g
Dimensions 87.2 mm × 73.3 mm × 161.5 mm
Operating Temperature -30 to 55℃
Eye Relief 19.5 mm
Smart Function
Hot Track Yes
Distance Measurement Yes
Standby Mode Yes
Hot Spot Yes
System
Built-in Memory 16 GB
Record Video Yes
Capture Snapshot Yes
Power Supply
Power Removable Battery
Battery Type One 18650 battery
Battery Operating Time 5 hours
Laser Rangefinder
Laser Safety Class Class 1
Wavelength 905 nm
Maximum Measuring Range 600 m
Measurement Accuracy ± 1 mGH25L
