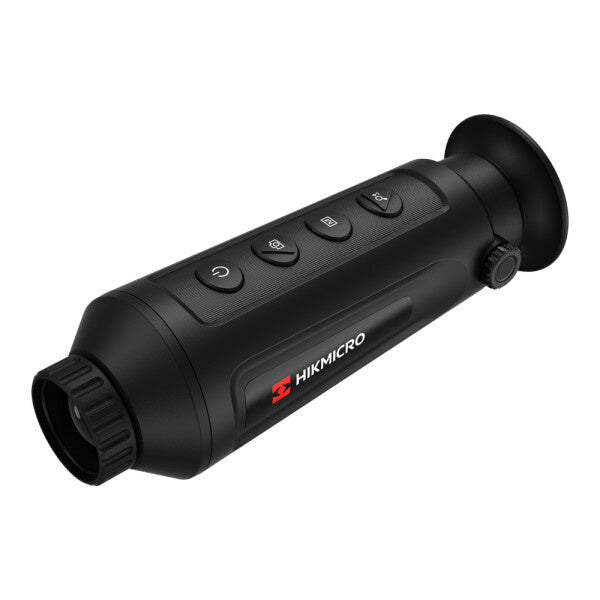

Hikmicro Lynx Pro LH19 Handheld Thermal Observation Camera
HIKHM-TS03-19XG/W
Compact Size, Easy to Carry
Lightweight design, weighing only 310 g/0.68 lb.
Advanced VOx 12 μm Imaging Sensor
The LYNX PRO series features the new VOx 256×192/384×288 12 μm sensor (less than 35 mK) and a large-aperture lens, delivering a clear picture of the target even in complete darkness.
Long Detection Range
With the advanced imaging sensor and lens, the detection range for a 1.7 m target can reach up to 1200 m.
Video and Snapshot
Onboard 8 GB memory offers storage space for snapshots and video clips. Recorded files can be downloaded when connected to a PC via USB port.
Hotspot for Mobile App
Integrated hotspot module makes the Sight app function as a second display. Users can use digital zoom, video recording and other features on their phones.
Thermal Module LH19
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 384×288
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 35 mK (@25°C),F#=1.0
Lens (Focal Length) 19 mm
Detection Range 900 m
Field of View 13.8° × 10.4° (H × V)
Aperture F1.0
Magnification 1.86 to 14.88
Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×
Image Display
Display0.4 inch, LCOS, 1280× 960
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Palettes White Hot, Black Hot, Red Hot, Fusion
General
Power Consumption 1.5W
Protection Level IP67
Weight 310 g (0.68 lb)
Dimension 171 mm × 61 mm × 57 mm (6.73" × 2.40" × 2.24")
Hardware InterfaceType-C Interface
Work Temperature/Humidity-20 °C to 55 °C (-4 °F to 131 °F)
Power 5 VDC/2 A
Smart Function
Hotspot Yes
Hot Track Yes
Standby Mode Yes
System
Record Video Yes
Capture Snapshot Yes
Storage Built-in memory module (8 GB)
Power Supply
Power Lithium Battery
Battery Operating Time 7.5 hours continuous running with hotspot function off (@25°C) 6 hours continuous running with hotspot function on (@25°C)
Battery Capacity Display Yes
