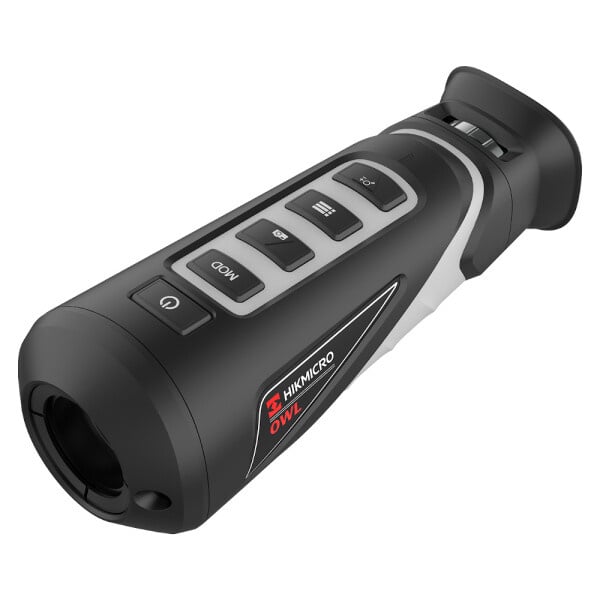

Hikmicro Owl OH25 Handheld Thermal Observation Camera
HIKDS-2TS03-25XF/W
Hikmicro Owl OH25 Handheld Thermal observation camera. 640x512 pixels, VOx UFPA, 35mm lens, Pixel pitch 17 µm, NETD< 35mk, Stream in max resolution at 50fps, 2x 4x digital zoom. N/ASupport WiFi, Build in 16G memory module, Support 0.39'' 1024*768 OLED screen
High Image Quality
An NETD <35 mk thermal sensor and large aperture F1.0 lens provide contrasted, sharp and clear image. High resolution up to 640 x 512 can provide wide field of view.
Long Detection Range
With high-sensitivity sensor and long-focus objective lens, OWL series can detect 1.8 m target at a distance up to 1300m.
Wide Operating Temperature Range
With advanced OLED and structure design, OWL series can work in a low temperature of -30 degrees.
Video and Snapshot
Onboard 16 GB memory offers storage space for the snapshots and video clips. Recorded files can be downloaded when connected to PC via USB Port.
Hotspot for Mobile App
Integrated hotspot module makes Sight app as a second display. Users can use digital zoom, video recording and other features on their phones.
Thermal Module OH25
Image Sensor VOx Uncooled Focal Plane Arrays
Frame Rate 50 Hz
Pixel Interval 17 μm
Response Waveband 8 μm to 14 μm
NETD Less than 35 mK (@25°C),F#=1.1)
Detection Range 900 m
Field of View 14.88° × 11.19° (H × V)
Aperture F1.0
Magnification 1.7 - 13.6
Focal Length 25mm
Resolution 384×288
Image Display
Digital Zoom 1 ×, 2 ×, 4 ×，8x
Monitor 0.39 inch, OLED, 1024 × 768
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Palletes White Hot, Black Hot, Red Hot, Fusion
General
Power Consumption 1.5W
Protection Level IP67
Drop Test Height 2 m (6.56 feet)
Weight 460 g (1.01 lb)
Dimension 189 mm × 73.7 mm × 66 mm (7.44" × 2.90" × 2.60")
Mounting UNC 1/4' - 20
Hardware Interface Type-C USB
Work Temperature/Humidity From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
Power 5 VDC/2 A
Smart Function
Hot Track Yes
System
Record Video Yes
Capture Snapshot No
Hotspot Yes
Standby Mode Yes
Storage Built-in memory module (16 GB)
Power Supply
Power Rechargeable Lithium Battery
Battery Operating Time7 hours continuous running with hotspot function off (@25°C) 5.5 hours continuous running with hotspot function on (@25°C)
Battery Capacity Display Yes
