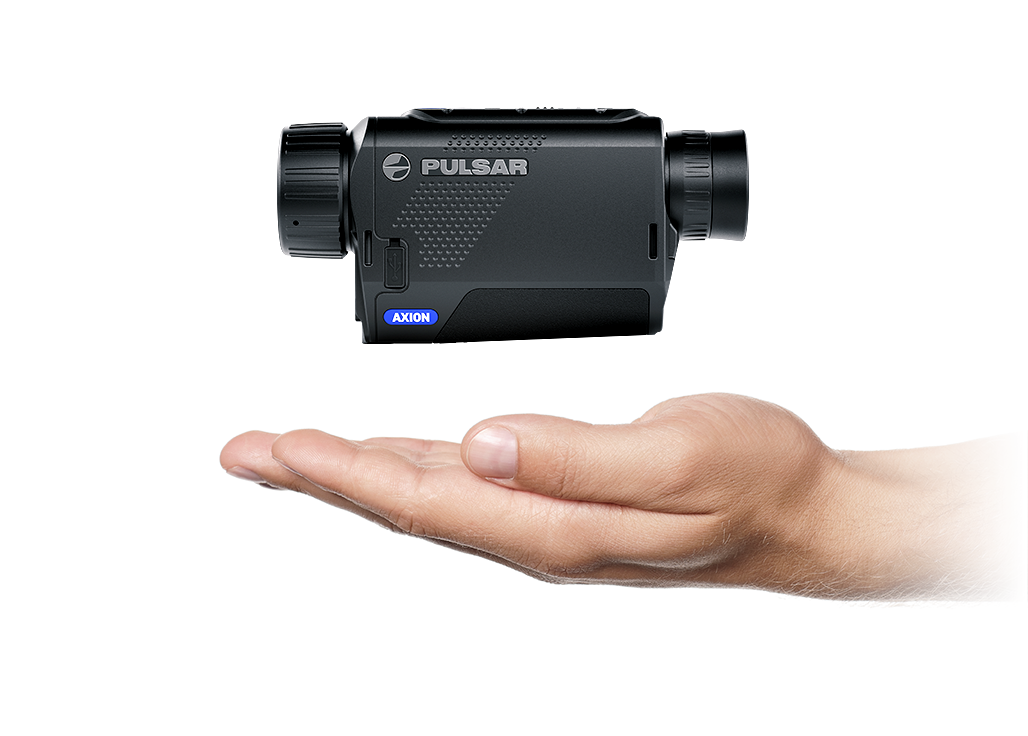

Pocket-sized dimensions and light weight
Axion XM has a space-saving and pocket-sized design and weighing less than 250 grams. This is a classic option for a running hunting and tourism. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical arrangement of buttons on the upper panel.
Detection Range up to 1300 m
In Axion XM30F thermal imaging devices, space-saving dimensions fit together with a high detection potential. High-quality optics and a thermal imaging sensor with a 12-micron pixel will help to observe an object with 1.8 meters high on distant approaches, up to 1300 meters.
Ideal optical magnification
Thermal imaging device solves practical problems of observation during the hunting already at the starting magnification. The 3x magnification of Axion XM30F is optimal for a comfortable study of the trophy at short and medium distances, the field of view is sufficient for observing dynamic scenes. The magnification is increased up to 4 times by means of digital zoom to identify distant objects.
Rugged magnesium alloy housing
Axion XM is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time a metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.
Low power consumption. 5+ hours of battery life on a single charge

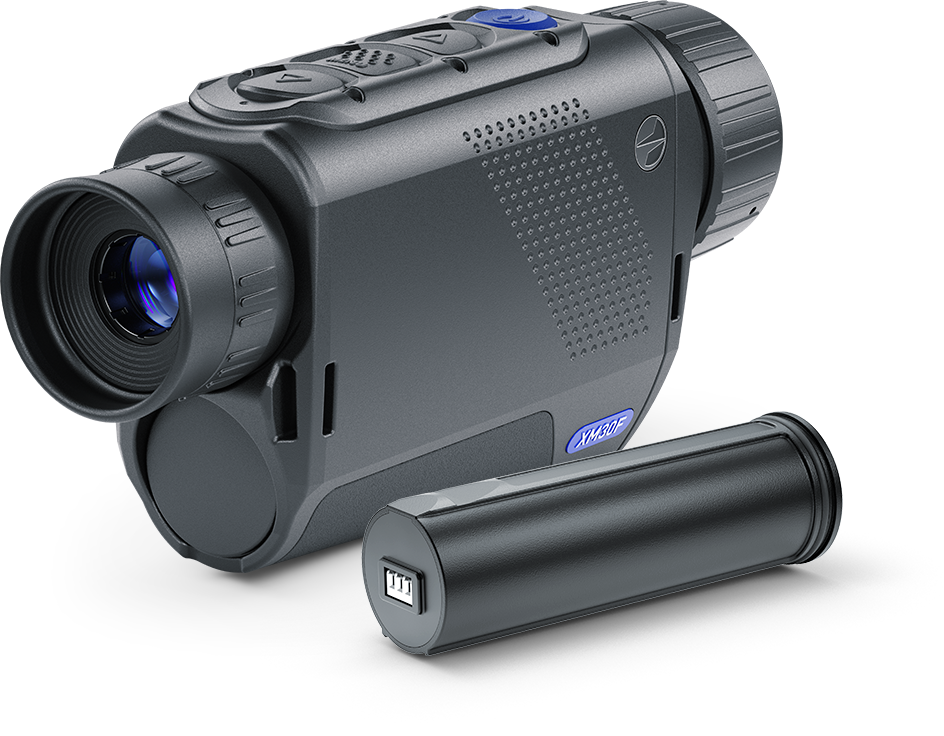

A quick-change APS3 rechargeable battery provides 5 hours of continuous operation of the thermal imaging device on a single charge. The battery is removed from a battery housing and replaced with a new one in seconds. The battery is charged in a special device or inside the device from a PC, household power system or power bank via USB. The same sources are used for external power supply of a thermal imaging device.
3 sensitivity amplification levels
Selection of the signal amplification level combined with new filtration algorithms with fine brightness and contrast adjustments offers the hunter great opportunities for long-range detection of game under diverse weather and temperature conditions. The amplification setting helps to define an animal’s trophy features and ensures clear rendering of objects and background in the field of view.
Frost-resistant AMOLED Display
A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.
A selection of 8 color palettes
A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.
Photo and video recording
The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 16 GB of internal memory provide many hours of recorded video and tons of photos.
Stream Vision 2. WiFi integration with iOS and Android devices
The built-in WiFi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.
IPX7 Waterproof Rated
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.
Sensor 320x240 pix. @ 12 µm (NETD <50 mK)
Magnification, x 3 - 12 (4x zoom)
Field of view (HxV), degrees / m@100m 7.8x5.9 / 13.7
Resolution, pixels 320x240
Field of view (HxV), degrees / m @ 100 m 7.8x5.9 / 13.7
Resolution, pixels 640x400
Safety class for laser equipment according to IEC 60825-1:2014 -
Max. measuring range, m -
Measurement accuracy, m -
Video / photo resolution, pixel 528х400
Video / photo format .mp4 / .jpg
Built-in memory capacity -
Wireless Standard IEEE 802.11 b/g/n/ac
Degree of protection, IP code (IEC60529) IPХ7
Operating temperature range, °С -
Connections and Compatibilities
Output voltage, V 3.0 - 4.2
Battery type Li-Ion Battery Pack APS 3
Operating time on battery pack (at t=22°C), h * -
External power supply, V 5 (USB)
