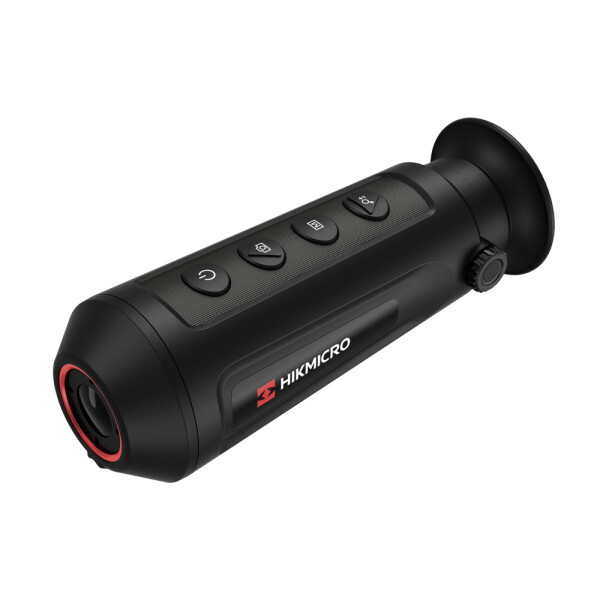

Lynx LC06 Handheld Thermal Observation Camera

Produktbeschreibung

Hikmicro Lynx LC06 Handheld Thermal Observation Camera
HIKHM-TS02-15X

Long Operating Time
Low power consumption makes the continuous operating time up to 10 hours.

Large Digital Zoom
Digital zoom up to 8× offers better focus on small target from a far distance.

Smart Range Measurement
Measuring distance quickly with high accuracy based on the top and bottom of the target.

Standby Mode
Standby mode is designed to save power consumption with screen off while other features on.

4 Color Palettes
LYNX series provides 4 color palettes for different scenarios.

Video and Snapshot
Onboard 8 GB memory offers storage space for the snapshots and video clips. Recorded files can be downloaded when connected to PC via USB Port.

Hotspot for Mobile App
Integrated hotspot module makes HIKMICRO Sight app as a second display.

Thermal Module LC06
Image Sensor VOx Uncooled Focal Plane Arrays
Frame Rate 50Hz
Pixel Interval 17μm
Response Waveband 8μm to 14μm
NETD Less than 35 mK (@25°C),F#=1.1
Detection Range 250m
IFOV 2.74 mrad
Field of View24.7° × 18.7° (H × V)
Aperture F1.1
Focal Length 6.2mm
Resolution 160×120

Image Display
Digital Zoom 1 ×, 2 ×, 4 ×
Monitor 0.2 inch, LCOS, 720 × 540
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Palletes White Hot, Black Hot, Red Hot, Fusion

General
Power Consumption 1.5W
Protection Level IP67
Weight 250 g (0.55 lb)
Dimension 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
Hardware InterfaceType-C Interface
Work Temperature/Humidity-20 °C to 55 °C (-4 °F to 131 °F)
Power 5 VDC/2 A

Smart Function
Hot Track Yes
Distance Measurement Yes

System
Record Video Yes
Capture Snapshot No
Hotspot Yes
Standby Mode Yes
Storage Built-in memory module (8 GB)

Power Supply
Power Rechargeable Lithium Battery
Battery Operating Time10 hours continuous running with CVBS and hotspot off (@25°C) 7.5 hours continuous running with CVBS and hotspot on (@25°C)
Battery Capacity Display Yes



Eigenschaften

Artikelnummer:
HM-TS02-15XG
EAN
6974004640088
