Owl OQ35 Handheld Thermal Observation Camera

Produktbeschreibung

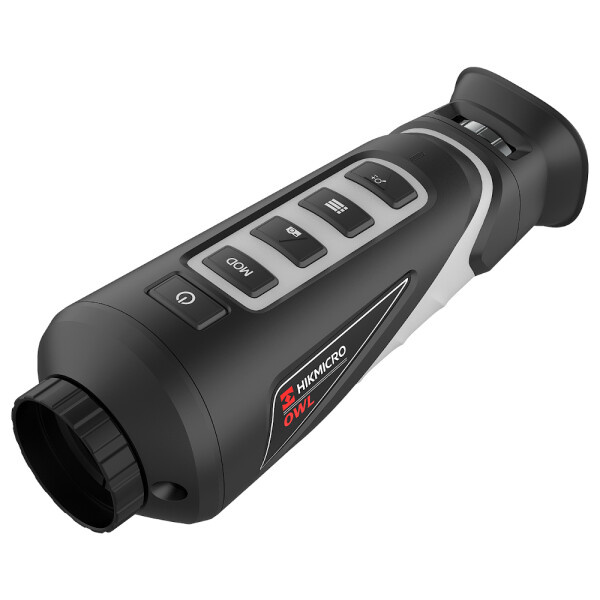

Hikmicro Owl OQ35 Handheld Thermal Observation Camera
HIKDS-2TS06-35XF/W

Hikmicro Owl OQ35 Handheld Thermal observation camera. 640x512 pixels, VOx UFPA, 35mm lens, Pixel pitch 17 µm, NETD< 35mk, Stream in max resolution at 50fps, 2x 4x digital zoom. N/ASupport WiFi, Build in 16G memory module, Support 0.39'' 1024*768 OLED screen

High Image Quality
An NETD <35 mk thermal sensor and large aperture F1.0 lens provide contrasted, sharp and clear image. High resolution up to 640 x 512 can provide wide field of view.

Long Detection Range
With high-sensitivity sensor and long-focus objective lens, OWL series can detect 1.8 m target at a distance up to 1300m.

Wide Operating Temperature Range
With advanced OLED and structure design, OWL series can work in a low temperature of -30 degrees.

Video and Snapshot
Onboard 16 GB memory offers storage space for the snapshots and video clips. Recorded files can be downloaded when connected to PC via USB Port.

Hotspot for Mobile App
Integrated hotspot module makes Sight app as a second display. Users can use digital zoom, video recording and other features on their phones.

Thermal Module OQ35
Image Sensor VOx Uncooled Focal Plane Arrays
Frame Rate 50 Hz
Pixel Interval 17 μm
Response Waveband 8 μm to 14 μm
NETD Less than 35 mK (@25°C),F#=1.1)
Detection Range 1300 m
Field of View 17.7° × 14.2° (H × V)
Aperture F1.0
Magnification 1.4 - 11.2
Focal Length 35mm
Resolution 640×512

Image Display
Digital Zoom 1 ×, 2 ×, 4 ×，8x
Monitor 0.39 inch, OLED, 1024 × 768
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Palletes White Hot, Black Hot, Red Hot, Fusion

General
Power Consumption 2W
Protection Level IP67
Drop Test Height 2 m (6.56 feet)
Weight 500g (1.10 lb)
Dimension 201.6 mm × 73.7 mm × 66 mm (7.94" × 2.90" × 2.60")
Mounting UNC 1/4' - 20
Hardware Interface Type-C USB
Work Temperature/Humidity From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
Power 5 VDC/2 A

Smart Function
Hot Track Yes

System
Record Video Yes
Capture Snapshot No
Hotspot Yes
Standby Mode Yes
Storage Built-in memory module (16 GB)

Power Supply
Power Rechargeable Lithium Battery
Battery Operating Time 5.5 hours continuous running with CVBS and hotspot function off (@25°C) 4.5 hours continuous running with CVBS and hotspot function on (@25°C)
Battery Capacity Display Yes
